PGS2000 Parking Guidance System

Product Category : PGS2000 Parking Guidance System

PGS2000 Parking Guidance System helps customers find parking spots quickly thereby increasing customer satisfaction and reduce carbon emission.

PGS2000 Parking Guidance System

Product description

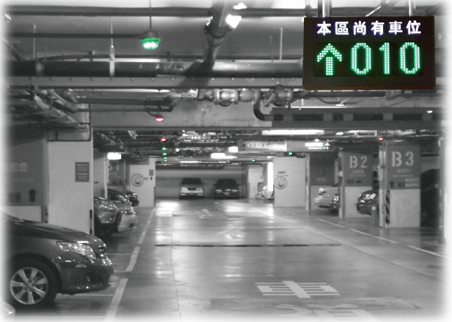

With the LED information panels, which show the direction of parking spot as soon as you enter, and an illuminated indicator above each parking space, which shows the status of each parking space, the PGS2000 Parking Guidance System helps drivers saved time and reduce carbon emission from looking for parking space.



Installed on the top front of each parking space is a LED indicator with built-in ultrasonic sensor (lamp/sensor separate model available upon request) for vehicle detection. It continuously scans the parking space and interacts with a zone controller that manages the displays. The standard LED comes in two colors, red and green (red for "occupied" and green for "vacant").



One zone controller can connect up to 40 ultrasonic detectors and collect their data. An LED information panel is installed to display information provided by its connected zone controller. Each central controller can connect up to 50 zone controllers and process all data collected from all zone controllers to the PGS2000 parking guidance software.



An optional area counting system can be easily integrated and installed. Simply connect a loop detector controller to the central control unit, the central control unit will then control the LED floor count displays according to the signals from the loop detector. A loop detector controller has 8 signal contact points.



The PGS2000 parking guidance software provides a full graphic interface for managing the parking guidance system and monitoring the entire parking facility remotely.

System flow chart

Product specifications

Features

  • Detector and lamp are combined into one unit.
  • Bi-colored vacancy lamps with 360° emitting angle provides the best visibility.
  • Full graphic interface for a real time monitoring and remote management.
  • Guiding system can be operated standalone without management server.


Your Benefits

  • Reducing traffic for finding a parking space means:

- Less air pollution in the parking facility.
- Safer environment for people walking and driving in the parking facility.
- Trouble and time saving for drivers.

  • Increase revenue - Faster turnaround and better utilization of each parking space results more income!
  • Reduce operation cost No more manual floor counting and less supervision required gives a dramatic time and labor saving on management operation.
  • Minimize maintenance cost Self-diagnostics and plug & play repair to minimize system mainte nance.


PGS2000 parking guidance software and server
PGS2000 software provides a management interface allows the operator to monitor and remotely control the entire parking guidance system.

  • Server station hardware specification: (suggested to purchase locally)

- CPU:Multi Core 2.0 GMHz or above.
- Memory : 2GB RAM or above.
- HDD : 160GB HDD or above.
- CD-ROM or DVD-ROM : DVD-Dual drive (DVD+/-RW).
- Interface : 100/1000 Mbps Ethernet ,USB2.0 * 2, Audio out * 1 .
- Display:17" color TFT LCD or above.

  • Software application interface:

- A program menu allows easy access to all function pages.
- To remotely manage, and monitor the guidance system via a graphic interface of the entire parking facility layout.






LED Information Panel

Three digits to show available parking spaces and an arrow for direction.
There are indoor and outdoor types to select for a LED information panel according to installed location. LED information panels are normally installed at entrances or intersections of a parking facility to provide guidance information to drivers.

  • work temperature: -20∼+80°C
  • rate voltage: AC 110∼220V
  • frequency: 50~60HZ
  • communication: RS-485
  • baud: 4800bps
  • distance: ≤1000m.






Ultrasonic detector lamp

The ultrasonic detector lamp combines ultrasonic sensors and LED lamp indicator into one device. Each parking space requires one ultrasonic detector lamp installed in front of the parking space.

The LED lamp indicator has two colors standard red/green as red indicates“occupied” and green indicates “vacant”.

  • Dimension: 14 x 14 x 7 cm
  • Weight: 113g
  • Work temperature: -40°C ∼80°C
  • LED lamp color: Red/Green
  • Voltage rating: DC 24V
  • Max. Detection Distance: 2m
  • Installation Height: 2.0∼3.0m
  • Max. Distance Error: 0.1m
  • Communication Distance: ≤1000m
  • Communication Interface: RS485
  • Baud Velocity: 4800bps


Central control unit

One parking facility requires one Central Control Unit. It can connect up to 50 Zone Controllers the maximum.
The Central Control Unit gathers and forwards information from all the Zone Controllers to the PGS2000 parking guidance server for management operation. It can also provide vacancy information to additional level or area vacancy LED display boards connected.

  • work temperature: -20∼+80°C
  • rate voltage: AC 110~220V
  • frequency: 50~60HZ
  • communication: 2 RS-232 serial port(RS-232-NODE RS-232-PC)
  • baud: RS-232-NODE:9600bps, RS-232-PC:57600bps
  • distance: ≤1000m


Zone controller

One Zone controller can connect up to 40 ultrasonic detector lamps. It gathers and forwards vacancy information from all the detectors to the Central Control Unit, and also forwards commands from the Central Control Unit to the LED information panels connected to it for displaying proper vacant information.

  • Dimensions: 30 x 24.5 x 6(CM)
  • Work temperature:-20+80°c
  • Rate Voltage: DC 24V
  • Rate current: 70mA
  • Communication: RS-485 serial port (sensor/sensor/CCU)
  • Baud: RS-485-B: 4800bps, RS-485-C: 9600bps
  • Distance:≦1000M
